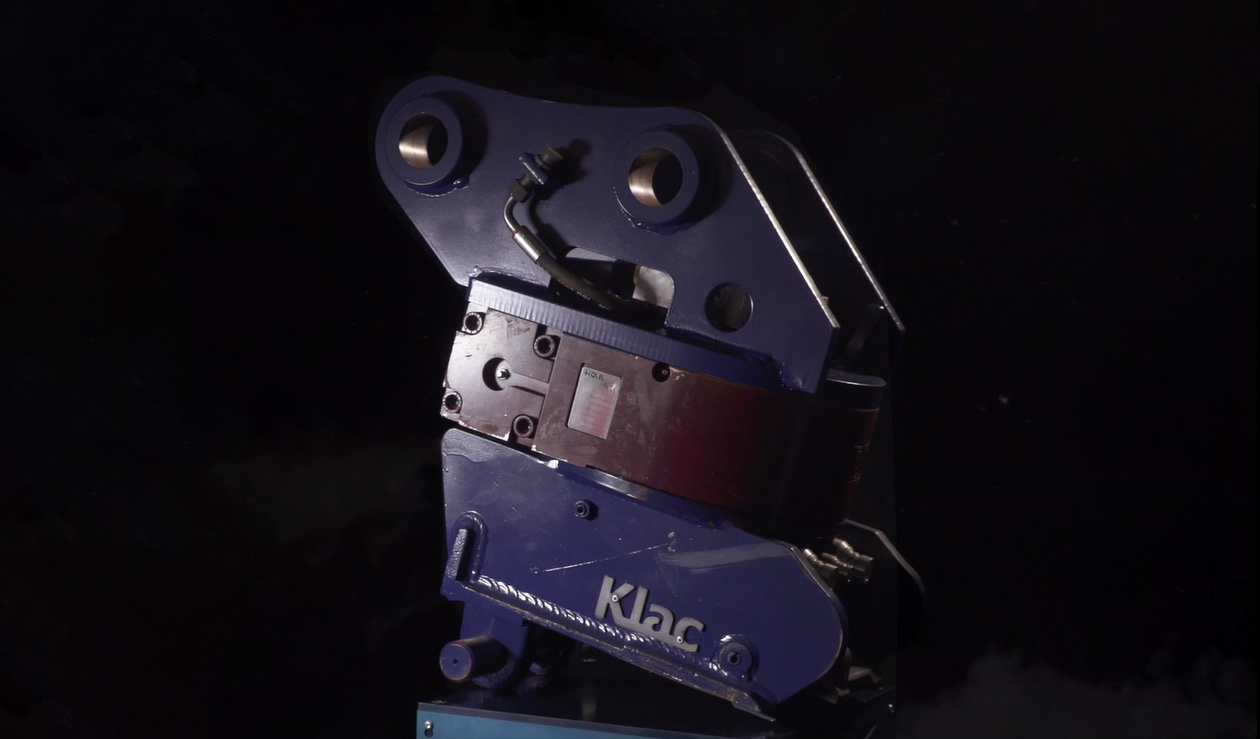

ROTATING HITCH ROTOK
TILTABLE HITCH TILTK
TILTABLE AND ROTATING COUPLER
DEMOLITION CLAMP
FORK PALLET LIFT
SELECTION CLAMP
SKID ADAPTER
HANDLING GRAPPLE
MIXING BUCKET
NARROW BUCKET SOLO
NARROW BUCKET Duo
NARROW BUCKET Trio
GRINDING HEAD
HEDGE TRIMMER
KLAC CITY BUCKET
HYDRAULIC PUMP
LOG SPLITTER CLAMP
WOOD CLAMP
RIPPER TOOTH
MULTIRIPPER BUCKET
KLAC MANIP
HYDRAULIC COUPLER KLAC System
As simple as the mechanical one
Quick coupler still simple and very compact, with permanent adjusting.
Hydraulic pressure is only for the release : no risk of accident due to an oil leak.
Read more
- Change the buckets without getting out of the cabin
- Mechanical and automatic locking, manuel unlocking remains possible if needed
- A simple effect hydraulic line for unlocking
- Follows the original manufacturer’s geometry
- Cast steel parts guaranteeing longevity and ruggedness
- Compliance with EC standards
TECHNICAL FEATURES
FOCUS ON KLAC PROTECT
CONNECTING HYDRAULIC ATTACHMENTS IS ALWAYS PROBLEMATIC :
the hose loop generated is difficult to control, the hose is located in a risk area, and the implementation is difficult in
the end balance.
Read more
Klac protect
The loop is contained in a box. It is thus controlled and protected, irrespective
of the position of the quick coupler,
throughout its movements.
Klac control
The case that triggers the release and provides continuous
control of the lock (visual and audible warning).
The hydraulic installation
Hydraulic Klac system requires 200 to 250 bars for proper operation. The seals of the cylinder and the hose Klac protect can operate up to pressures of 350 bar maximum, so it is not necessary to install a pressure limiter other than the one of the machine.
A free return to the tank is recomanded (in any case max 2 bars counter pressure).
HYDRAULIC Klac system RANGE
| Width (mm) | Coupler’s weight (kg) | Kit’s weight (kg) | |
|---|---|---|---|
| Model C 1 – 2t | nd | nd | 5 |
| Model D 2 – 3,5t | 230 | 26 | 9 |
| Model E 3,5 – 5,5t | 270 | 45 | 14 |
| Model F 5,5 – 9t | 310 | 75 | 24 |
Documents
Brochure UK
ABOUT SAFETY
THE EUROPEAN STANDARD EN474-1
Amended in 2013 now imposes specific requirements for engagement system and locking system.
Klac system hydraulic has the same trigger system (springs) and locking system
(latches) as the mechanical version.
The proper functioning of the hydraulic controls is indicated in the cabin. The hydraulic pressure is not required to maintain the locking.
The coupler remains locked at all the times.
